产品特点
● RNS：A304不锈钢喷砂秤体，A304不锈钢台面
● 采用应变指示器技术的高精度称重传感器
规格型号
| 产品名称 | RNC-ID226/RNS-ID226 |
| 秤台材质 | RNC：碳钢喷塑秤体，不锈钢台面；RNS：全A304不锈钢秤体 |
| 传感器 | RNC：WB1260传感器；RNS：WB702SH传感器 |
| 立柱 | 不锈钢圆管立柱 |
| 称重显示仪 | RNC：ID226ABS塑料；RNS：ID226不锈钢SS2 |
| 秤体容量 |
| 秤台尺寸 | 3kg | 6kg | 15kg | 30kg | 60kg | 150kg | 300kg |
| 240×300mm | ● | ● | ● | | | | |
| 300×400mm | | | ● | ● | ● | | |
| 400×500mm | | | | | ● | ● | |
| 460×600mm | | | | | ● | ● | ● |
| 500×650mm | | | | | ● | ● | ● |
| 600×800mm | | | | | ● | ● | ● |
| 检定分度值 | 1g | 2g | 5g | 10g | 20g | 50g | 100g |
| 环境，IP防护 | 干燥环境或轻微水环境，IP65 |

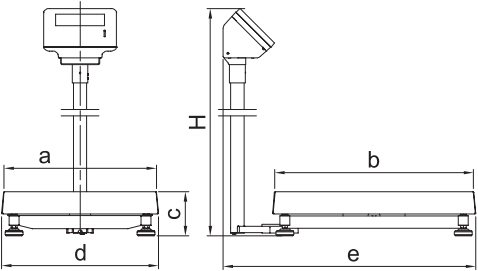

外形尺寸（mm）
| Model | a | b | C | e | d | H |
| BWARNC/RNS-240×300 | 240 | 300 | 86 | 460 | 250 | 506 |
| BWARNC-300×400 | 300 | 400 | 114 | 564 | 314 | 506 |
| BWARNS-300×400 | 300 | 400 | 141 | 564 | 314 | 506 |
| BWARNC-400×500 | 400 | 500 | 120 | 664 | 413 | 836 |
| BWARNS-400×500 | 400 | 500 | 137 | 664 | 413 | 836 |
| BWARNC/RNS-460×600 | 460 | 600 | 135 | 765 | 475 | 839 |
| BWARNC/RNS-500×650 | 500 | 650 | 145 | 816 | 518 | 839 |
| BWARNC/RNS-600×800 | 600 | 800 | 155 | 967 | 617 | 839 |
